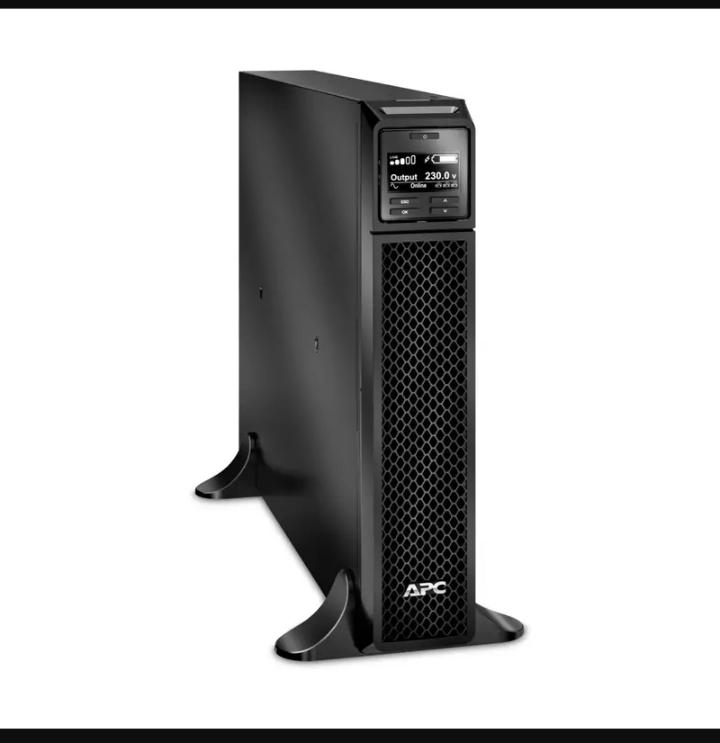

Key Features
Power Capacity: 3000VA / 2700W
Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Wave Type: Pure sine wave output for sensitive electronics
Transfer Time: 2–4ms typical, 6ms max
Efficiency: Operates in Green Mode for reduced energy consumption
Battery & Protection
Battery Type: Sealed lead-acid, maintenance-free
Recharge Time: ~3 hours
Battery Life: 3–5 years
Surge Protection: Shields devices from power spikes
Cold Start Capability: Allows startup without mains power
Battery Failure Notification: Alerts users to potential battery issues
Extended Runtime: Supports additional battery packs for longer backup duration
Connectivity & Management
Outlets: 8 × IEC C13 + 2 × IEC C19
Input Connection: IEC 320 C20
Communication Ports: Network Card, USB & Serial
SmartSlot: Expandable with optional network management cards
LCD Display: Multi-function graphic panel for real-time UPS status
Physical & Environmental Specs
Form Factor: Rack/tower convertible (4U)
Dimensions: 66.7 cm (D) × 43.2 cm (W) × 8.5 cm (H)
Weight: ~37.3 kg
Operating Temperature: 0–40°C
Humidity: 0–95% non-condensing
Noise Level: 55 dBA
This UPS is ideal for data centers, enterprise IT setups, VoIP systems, and critical infrastructure, ensuring uninterrupted operation during power disturbances.
