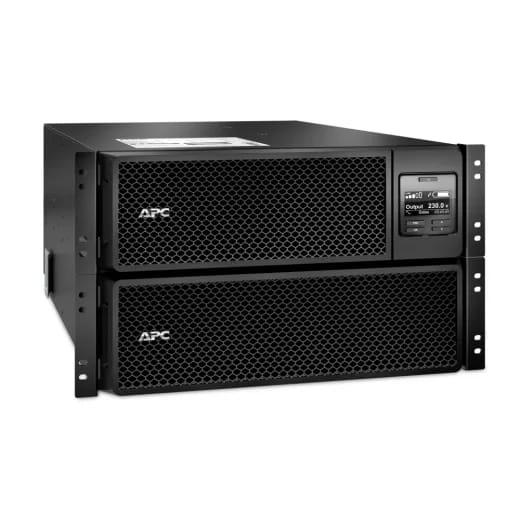

The APC Smart-UPS RT 10kVA is a high-density, double-conversion online UPS designed for enterprise IT environments, data centers, and critical infrastructure.
Key Features
Power Capacity: 10kVA / 10kW
Topology: Double-Conversion On-Line for seamless power protection
Wave Type: Pure sine wave output for sensitive electronics
Transfer Time: 0ms (continuous power conversion)
Efficiency: Operates at 94% efficiency at full load
Extended Runtime: Supports additional battery packs for prolonged backup
Battery & Protection
Battery Type: Sealed lead-acid, 192V
Recharge Time: ~4 hours
Battery Life: 3–5 years
Surge Protection: Shields devices from power spikes
Cold Start Capability: Allows startup without mains power
Battery Failure Notification: Alerts users to potential battery issues
Connectivity & Management

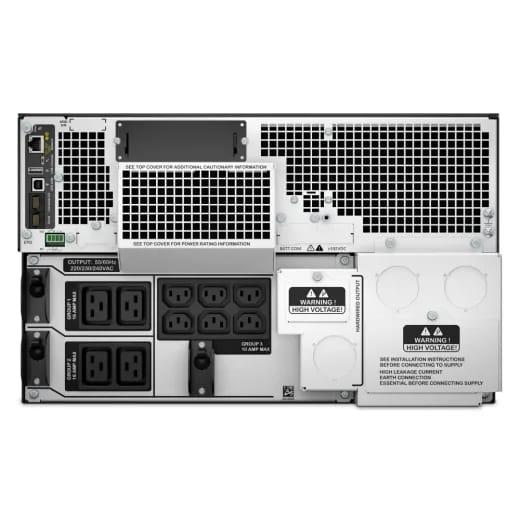

Outlets: Hard wire 3-wire (1P + N + E), 2 × IEC C13, 1 × IEC C19
Input Connection: Hard wire 3-wire (1P + N + E)
Communication Ports: USB & RS-232
Network Card: Embedded for remote monitoring and management
SmartSlot: Supports optional management cards
LCD Display: Multi-function graphic panel for real-time UPS status
Configurable Output Voltage: Adjustable to 220V, 230V, or 240V
Physical & Environmental Specs
Form Factor: Rack/Tower convertible
Dimensions: 21.7 cm (H) × 44 cm (W) × 68 cm (D)
Weight: ~101.5 kg
Operating Temperature: 0–40°C
Humidity: 0–95% non-condensing
Noise Level: 58 dBA
This UPS is ideal for data centers, enterprise IT setups, VoIP systems, and critical infrastructure, ensuring uninterrupted operation during power disturbances.
